The Brief
Large-scale residential estate — full BIM coordination across the development's multiple residential blocks.
Project Data
118 000 M² · ESTATE · 24 MONTHS
Our Approach
How we approached it.
Estate-scale coordination requires a block-by-block model structure that can be managed independently and federated at estate level. We authored the coordination protocol for the full estate, established the ACC project structure with a zone-based model breakdown, and assigned coordination leads per block.
Weekly clash detection runs were conducted at both block and estate level. Block-level runs caught discipline conflicts within each building; estate-level runs identified cross-block services coordination issues — particularly at the central utilities spine.

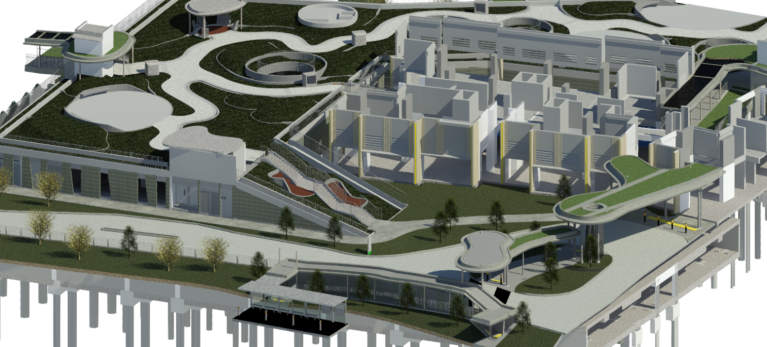

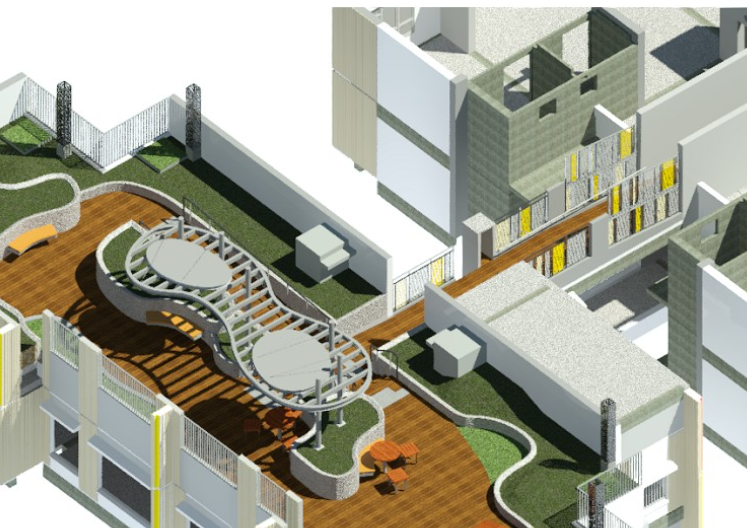

3D Model
Explore the model.
Outcome
What it delivered.
- Estate-wide BIM coordination protocol established and adopted across all blocks
- Cross-block services clashes identified and resolved in coordination phase
- Programme on track at 24-month milestone
